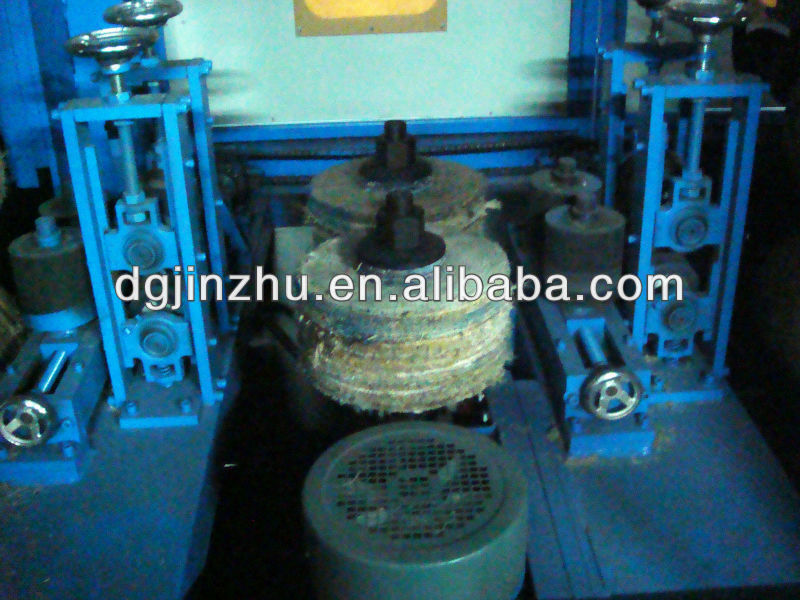

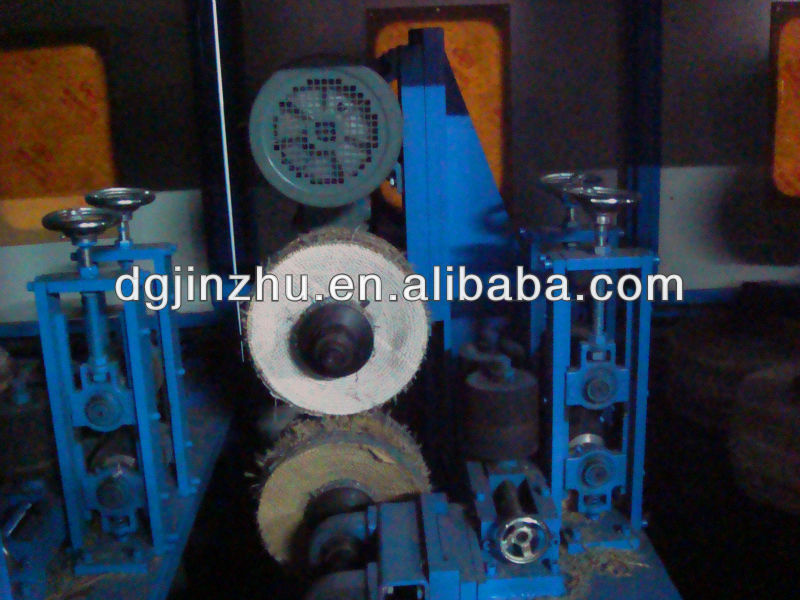

Stainless Steel square pipe polishing machine

Stainless Steel square pipe polishing machine

Stainless Steel square pipe polishing machine
Stainless Steel square pipe polishing machine Stainless Steel square pipe polishing machine Stainless Steel square pipe polishing machine

Ampliación de imagen :  Stainless Steel square pipe polishing machine Mejor precio

Datos del producto:

Lugar de origen: Guangdong, China (Continental)
Nombre de la marca: JINZHU
Número de modelo: JZ-P2003-4M

Pago y Envío Términos:

Cantidad de orden mínima: 1 set
Precio: Negotiable
Descripción detallada del producto
Servicio post-venta proporcionado: Centro de servicio de ultramar disponible nombre: Máquina pulidora del tubo del cuadrado del acero inoxidable
Tipo: Máquina pulidora del tubo cuadrado/rectangular tensión: 380V 50HZ
Motor principal: 4KW*32 Tamaño de pulido máximo: 100*100m m
Tamaño de pulido mínimo: 10*10m m Acabamiento final: Acabamiento del espejo
El usar: tubo del rectángulo, máquina pulidora del tubo cuadrado Productividad: 0-12m/min
Período de Garantía: 1 año
Alta luz:

cnc buffing machine

,

cnc flow forming machine

Competitive price with superior quality

100% quality
Reliable manufacturer
Good quality with reasonable price

Retangular/Square pipe polishing machine

Full auomatically





Specification



NameStainless Steel tube polishing machine Automatically
Voltage380V 50Hz
Main power4KW*4sets, 4KW*24sets, 4KW*32sets, the motor also can be 5.5KW
Speed of main motor1440r/min
spindle speed2300r/min
Input  speed1-12m/min can be adjusted
conveyor motor1.5KW
Min polishing size10*10mm
Max polishing size100*100mm
Voltage380V, 50Hz, 3 phase
Productivity0-8m/min
Final finishingsatin finishing, mirror finishing, smoothy







Product Description



  1.  Final finishing
  • For satin finishing, you can choose the 4KW*4 set machine, the wheel can be nylon wheel, flap wheel and sisal wheel.
  • For mirror finishing, you can choose the one with 24 set motor, then you can choose to install abrasive belt, sisal wheel, cloth wheel and so on.
  • For 8K mirror finishing, the machine with 32sets motor can be the best. installed abrasive belt, sisal wheel, clith wheel, cotton wheel and so on.

       2.  Automatically Compensating



       You can choose the machine with  automatically compensating system or not.
  • If with the  automatically compensating system, the machine can spry the liquid wax automatical according to your setting. Then no need people to put the wax in the wheel, the efficience improved and more security.

stainless steel tube polishing machinestainless steel tube polishing machine







Consumable items



stainless steel tube polishing machineStainless Steel square pipe polishing machine 3




Detailed Images

 sqaure tube polishing machine.jpg





 DSC03916.JPG  stainless steel tube polishing machine  stainless steel tube polishing machine



Final finishing



be polishing machine, stainless steel polishing machine, polishing maatically      stainless steel tube polishing machinestainless steel tube polishing machine



Warranty



 1. 100% quality Assurance

 2.  Warranty: One year
